详细参数
| 技术参数 Specifications | |||||||||||
| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | |
| Type | V | Hz | A | W | rpm | u F | m³/h/CFM | dB(A) | Min/Max(℃） | # | |
| F2E160-060W-AE25 | 220/230 | 50 | 0.75 | 160 | 2250 | 4 | 505/297 | 60 | -30/+60 | ① | CCC,CE,RoHS |

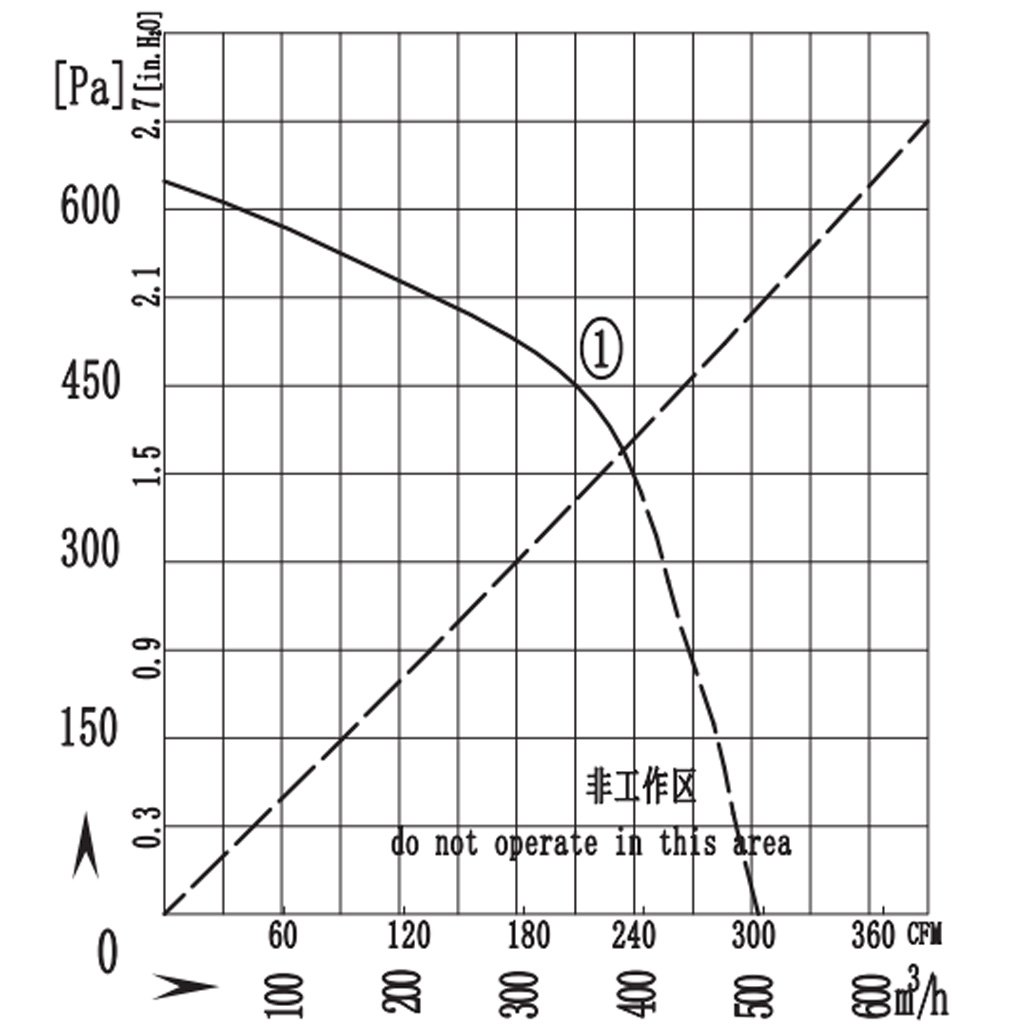

| 曲线 Curves |
 |

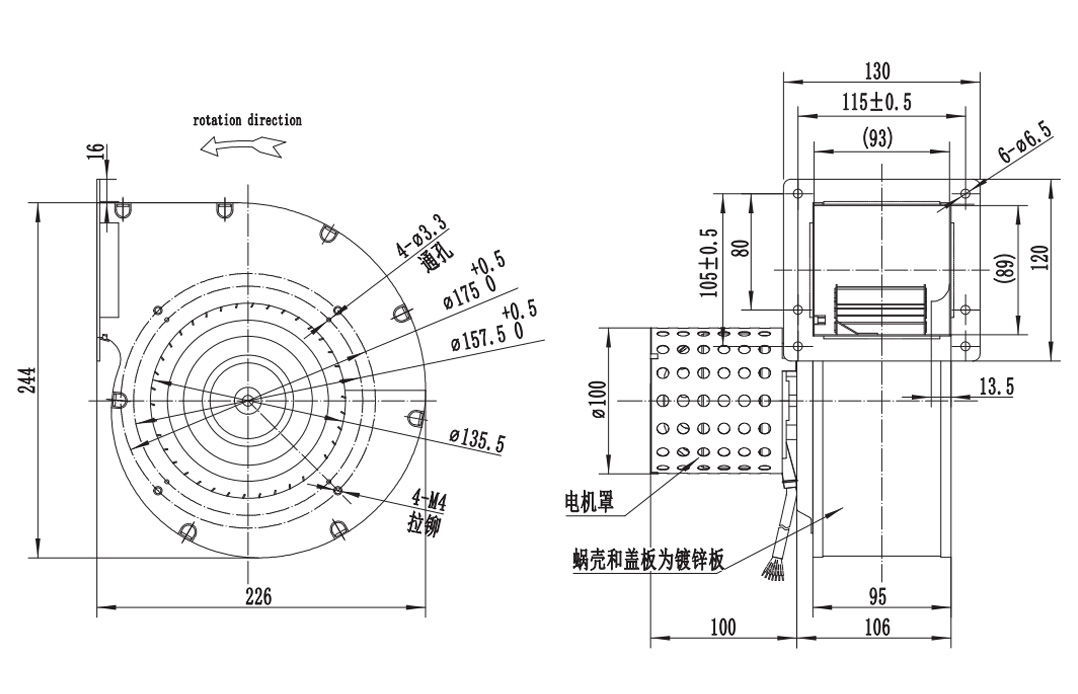

| 外形尺寸 Dimensions |
 |
