详细参数
| 技术参数 Specifications | ||||||||||||
| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | ||
| Type | V | Hz | A | W | rpm | u F | m³/h/CFM | dB(A) | Min/Max(℃） | # | ||
| A4D500B-4EN-VY71 | 400 | 50 | 1.7 | 750 | 1420 | / | 7000/4120 | 75 | -30/+75 | ① | CCC,CE,RoHS | |
| 60 | 2.1 | 1100 | 1740 | 8100/4770 | 79 | ② | ||||||

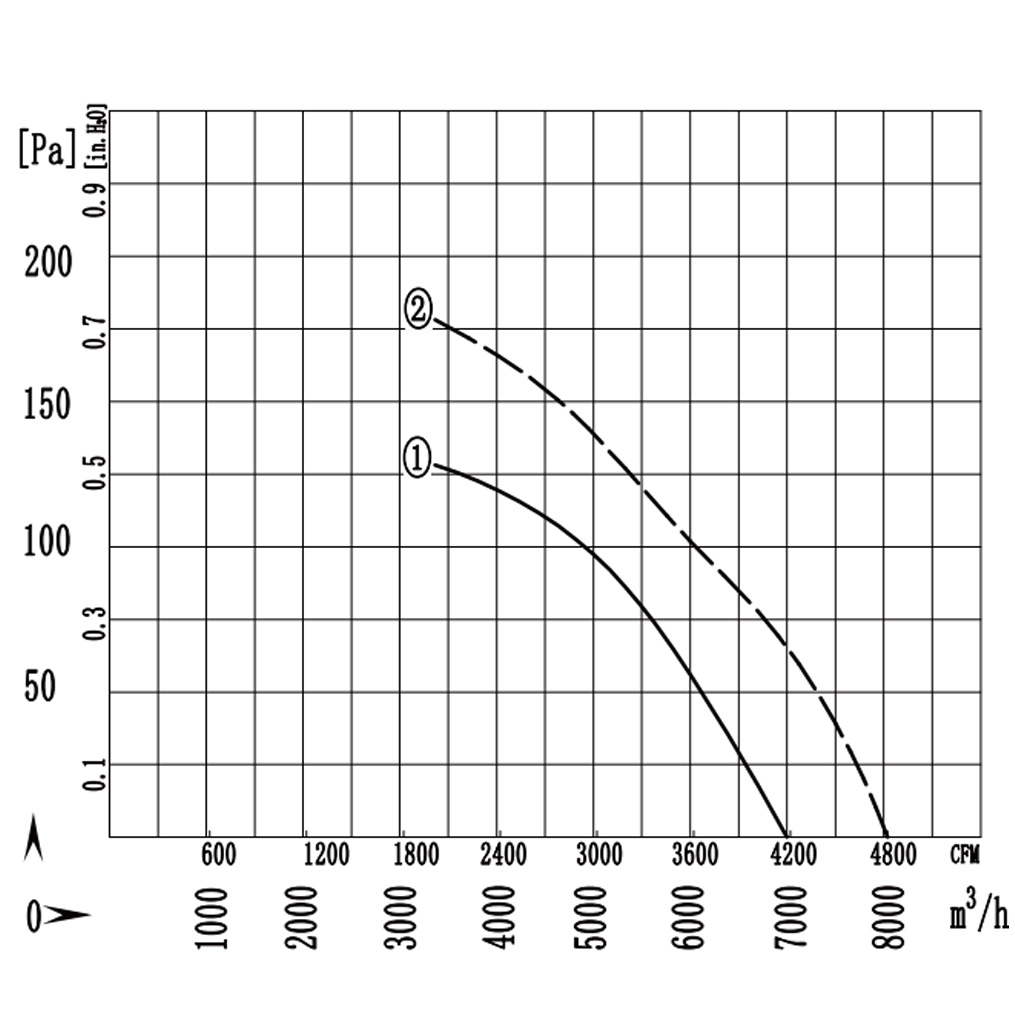

| 曲线 Curves |
 |

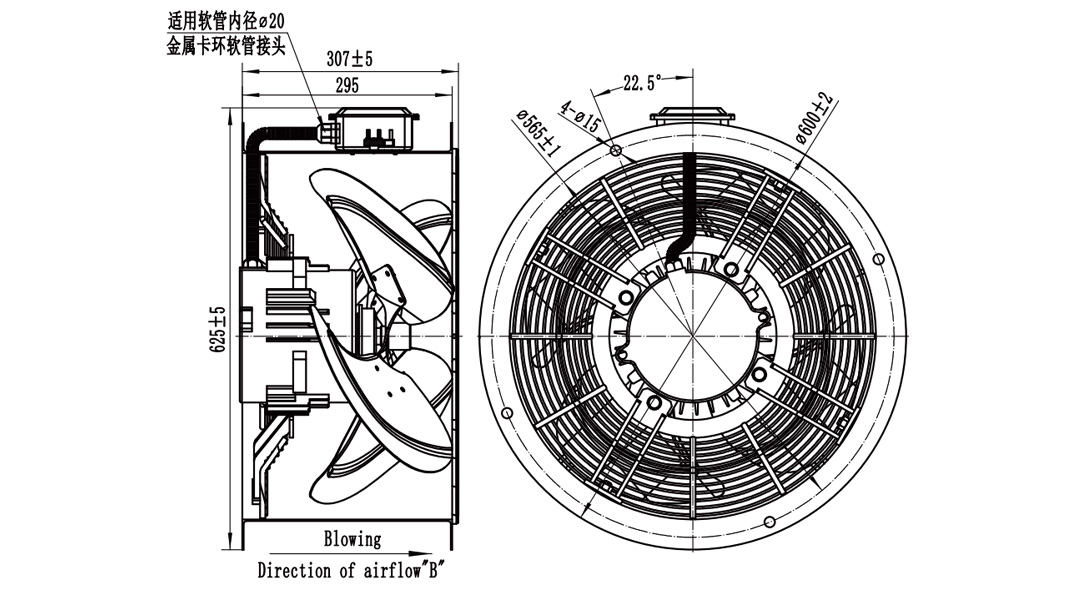

| 外形尺寸 Dimensions |
 |
