详细参数
| 技术参数 Specifications | ||||||||||||
| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | ||
| Type | V | Hz | A | W | rpm | u F | m³/h/CFM | dB(A) | Min/Max(℃） | # | ||

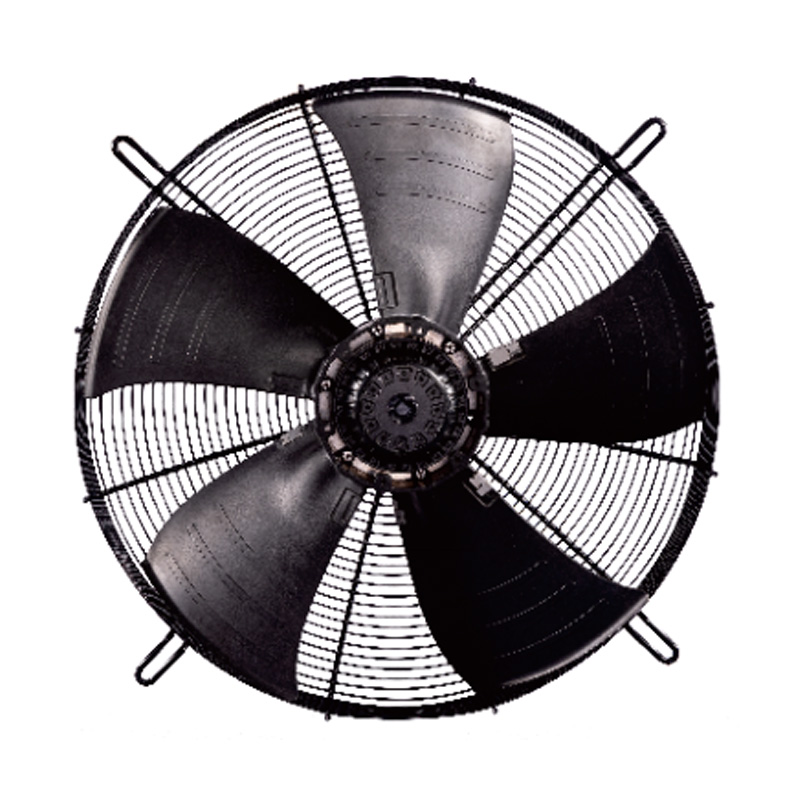

| A6E630S-5DM-ATS0 | 220/230 | 50 | 2.60 | 550 | 900 | 12 | 11600/6823 | 66 | -30/+60 | ① | CCC,CE,RoHS | |

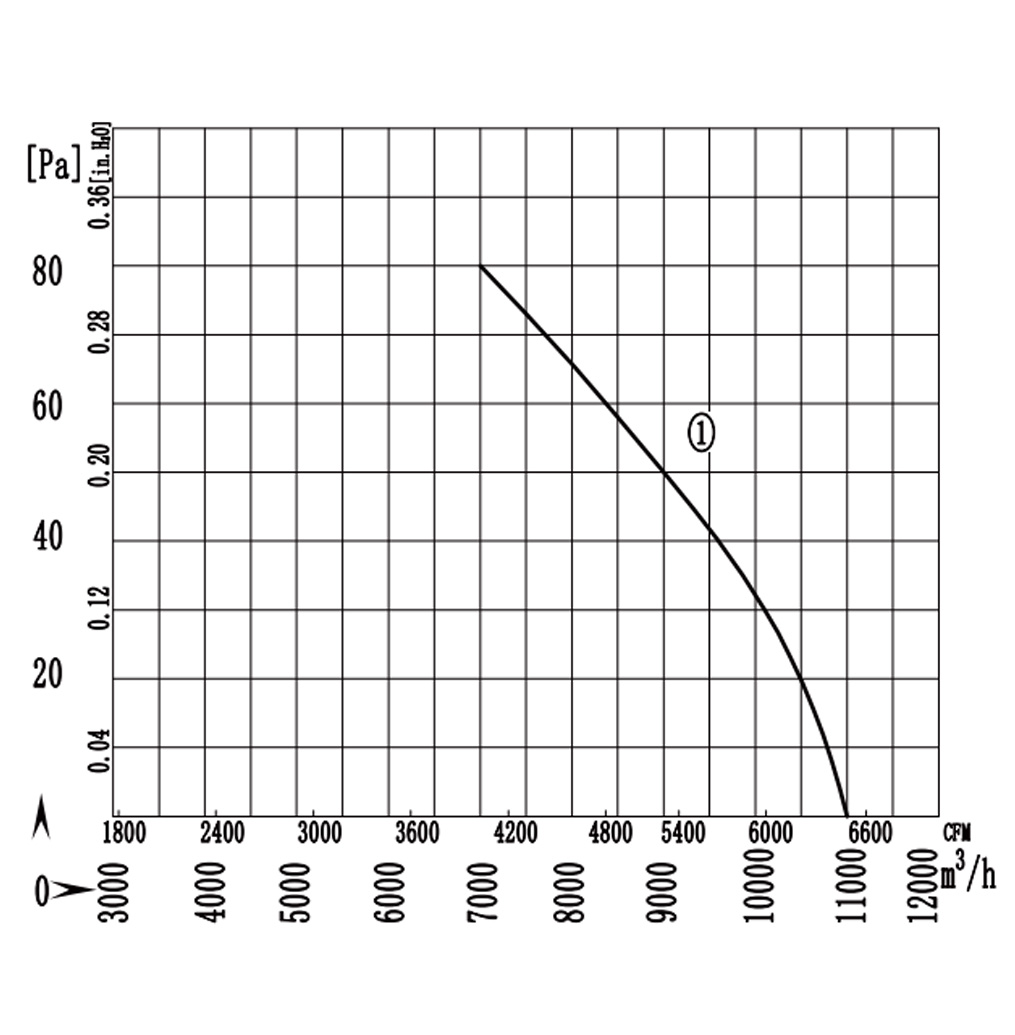

| 曲线 Curves |
 |

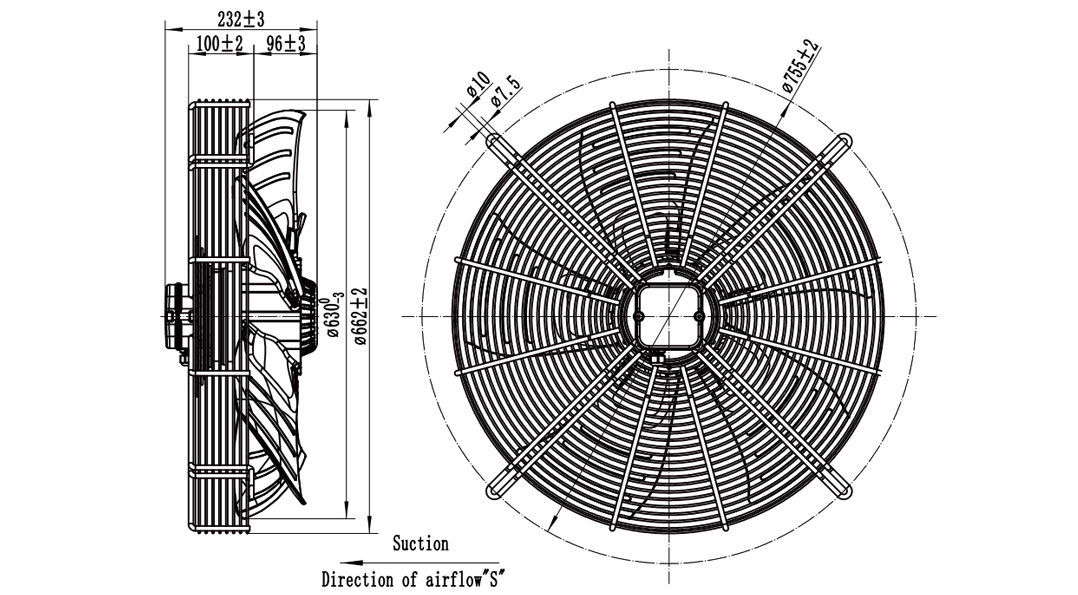

| 外形尺寸 Dimensions |
 |
