详细参数
| 技术参数 Specifications | ||||||||||||
| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | ||
| Type | V | Hz | A | W | rpm | u F | m³/h/CFM | dB(A) | Min/Max(℃） | # | ||
| A4D630S-7DM-SX00 | 380/400 | 50 | 4.50 | 2500 | 1380 | / | 19000/11823 | 84 | -30/+60 | ① | CCC,CE,RoHS | |
| 3.20 | 2000 | 1150 | 16500/9711 | 79 | ② | |||||||
| 曲线 Curves |
 |

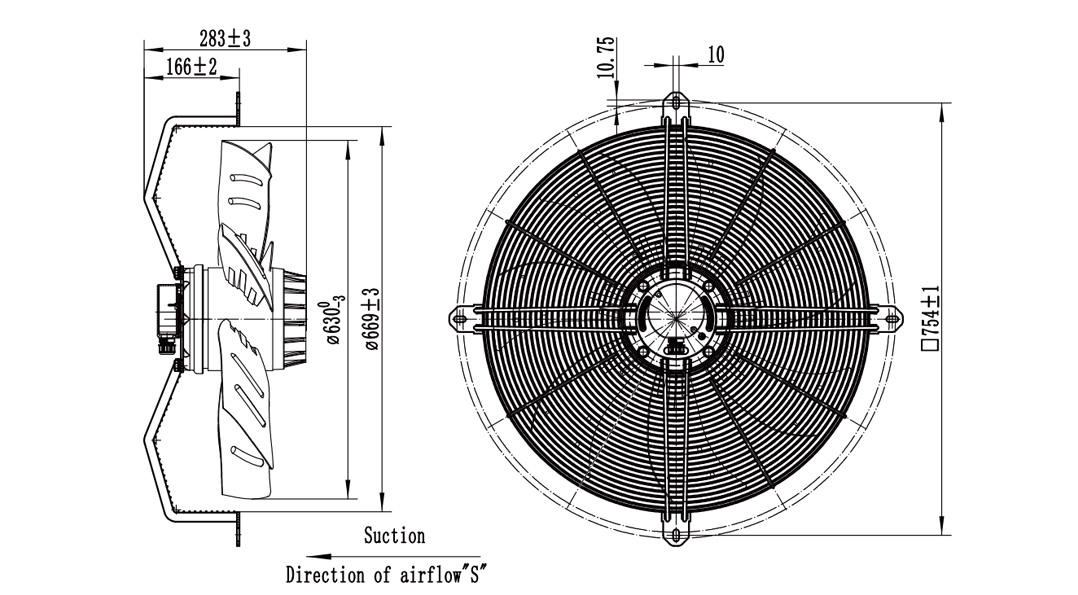

| 外形尺寸 Dimensions |
 |
