详细参数
| 技术参数 Specifications | ||||||||||||
| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | ||
| Type | V | Hz | A | W | rpm | u F | m³/h/CFM | dB(A) | Min/Max(℃） | # | ||
| A4D710S-7FM-SXF0 | 380/400 | 50 | 4.60 | 2550 | 1380 | / | 20000/11600 | 85 | -30/+60 | ① | CCC,CE,RoHS | |
| 3.20 | 2000 | 1150 | 17000/9860 | 80 | ② | |||||||

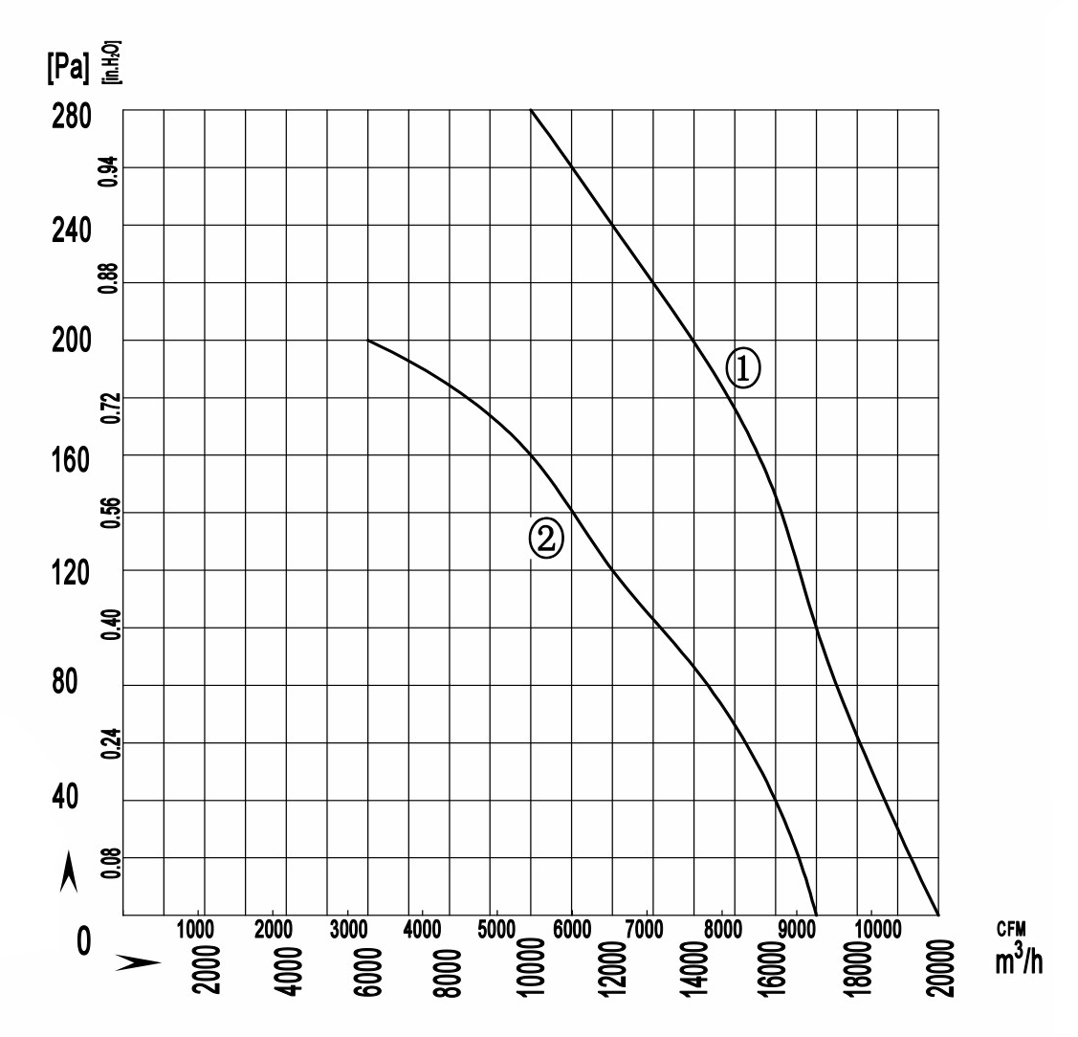

| 曲线 Curves |
 |

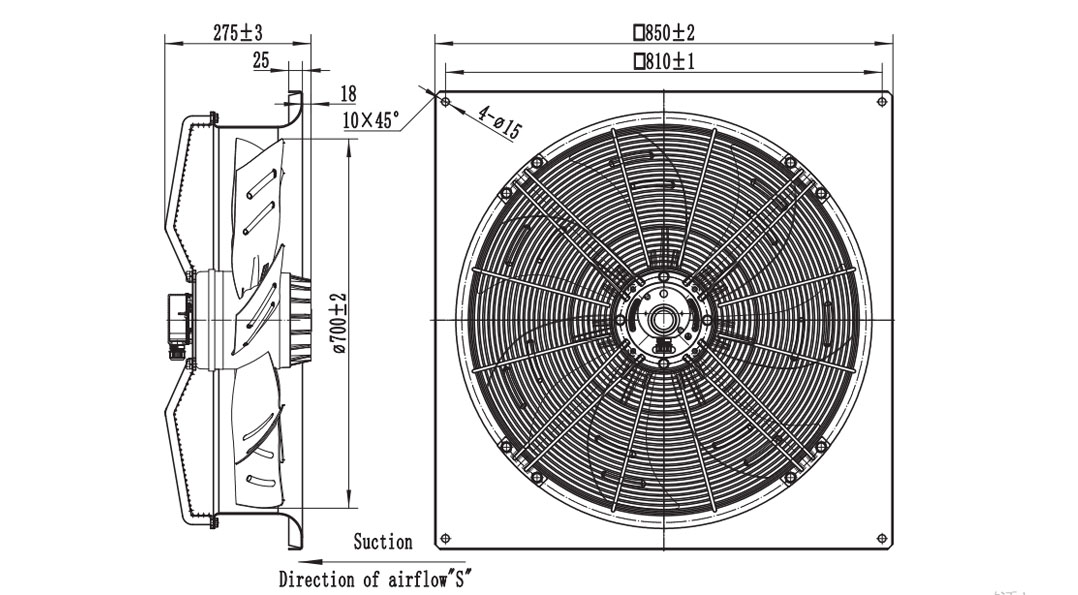

| 外形尺寸 Dimensions |
 |
