详细参数
| 技术参数 Specifications | ||||||||||||
| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | ||
| Type | V | Hz | A | W | rpm | u F | m³/h/CFM | dB(A) | Min/Max(℃） | # | ||
| B2E250-076A-AL01 | 220/230 | 50 | 0.80 | 190 | 2750 | 6 | 1460/859 | 75 | -30/+60 | ① | CCC,CE,RoHS | |
| 220/230 | 60 | 1.20 | 250 | 3000 | 6 | 1630/956 | 77 | -30/+60 | ② | CCC,CE,RoHS | ||

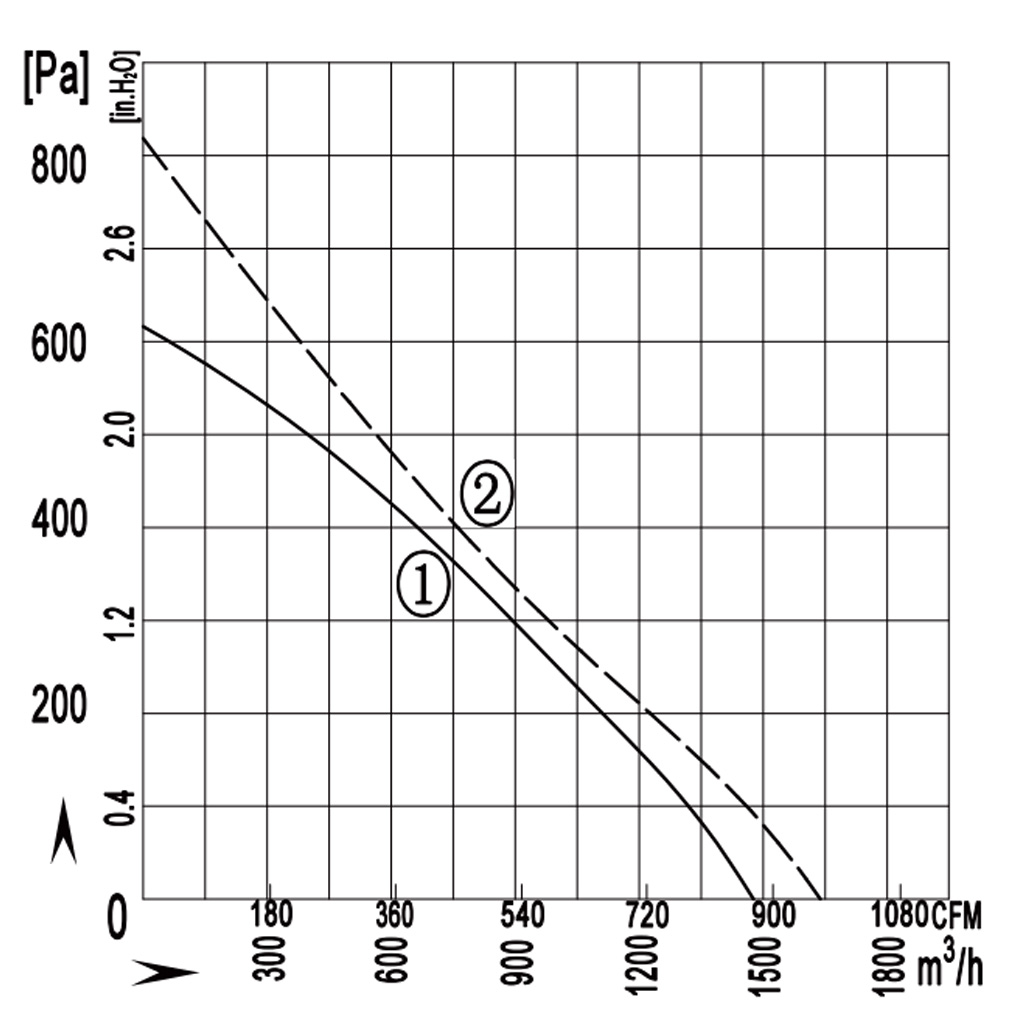

| 曲线 Curves |
 |

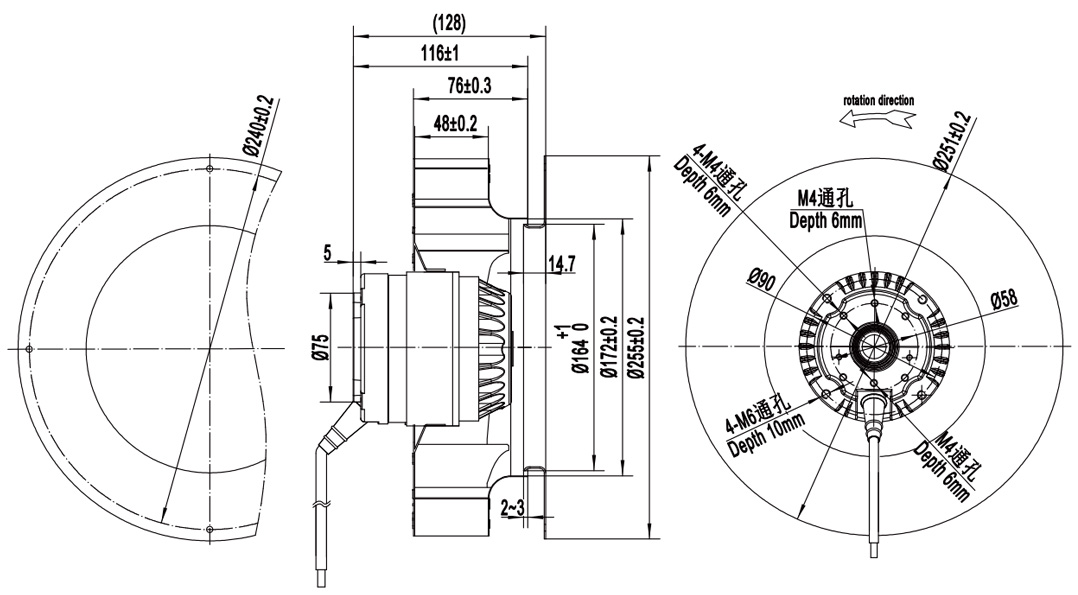

| 外形尺寸 Dimensions |
 |
