详细参数
| 技术参数 Specifications | |||||||||||
| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | |
| Type | V | Hz | A | W | rpm | u F | m³/h/CFM | dB(A) | Min/Max(℃） | # | |
| B4D560-198J-AX75 | 380/400 | 50 | 3.90 | 2100 | 1400 | / | 9700/5607 | 85 | -35/+70 | ① | CCC,CE,RoHS |

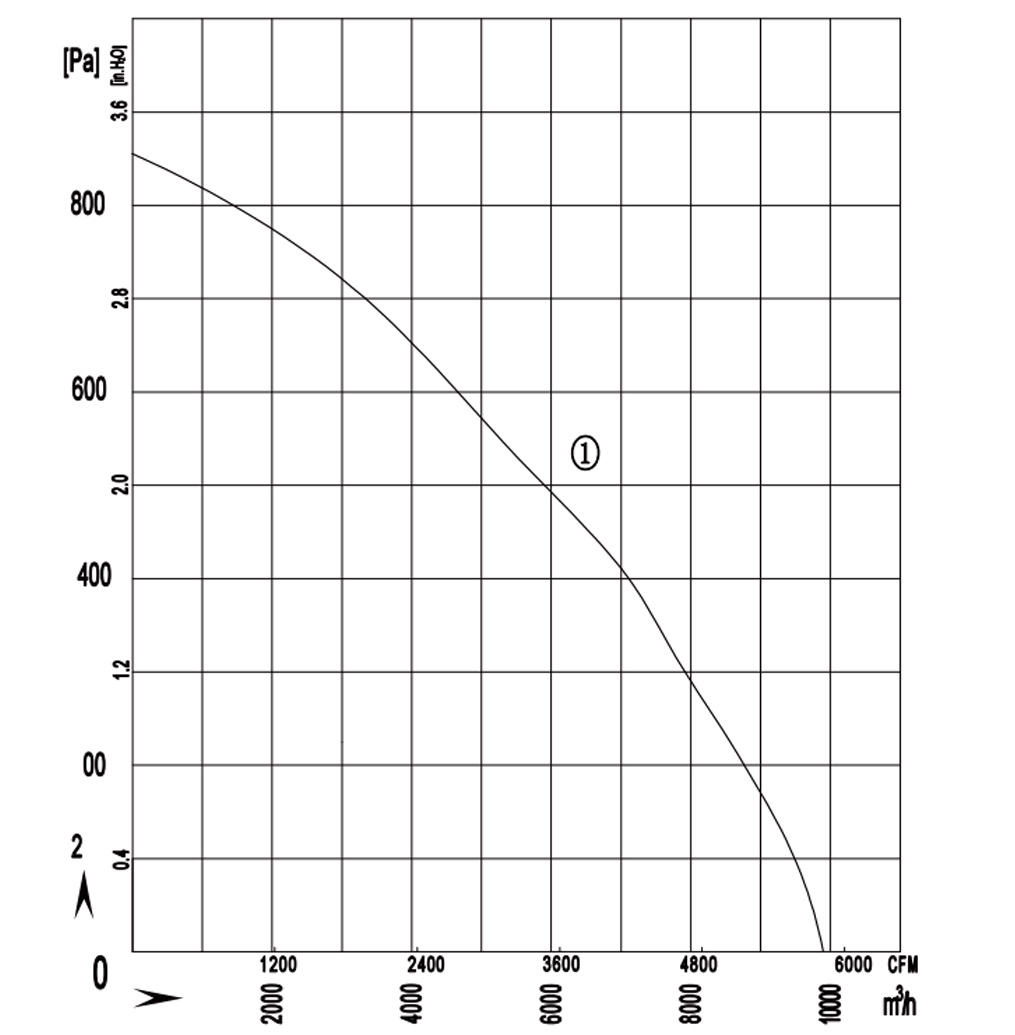

| 曲线 Curves |
 |
| 外形尺寸 Dimensions |
 |
