详细参数
| 技术参数 Specifications | ||||||||||||
| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | ||
| Type | V | Hz | A | W | rpm | u F | m³/h/CFM | dB(A) | Min/Max(℃） | # | ||
| B4E250-080A-AC00 | 220/230 | 50 | 0.24 | 50 | 1400.0 | 2 | 830/488 | 68 | -30/+60 | ① | CCC,CE,RoHS | |
| 220/230 | 60 | 0.27 | 60 | 1600.0 | 2 | 950/558 | 70 | -30/+60 | ② | CCC,CE,RoHS | ||
| B4D250-080A-AC00 | 380/400 | 50 | 0.15 | 50 | 1450 | / | 830/488 | 68 | -30/+60 | ① | CCC,CE,RoHS | |
| 380/400 | 60 | 0.15 | 60 | 1600 | / | 950/558 | 70 | -30/+60 | ② | CCC,CE,RoHS | ||

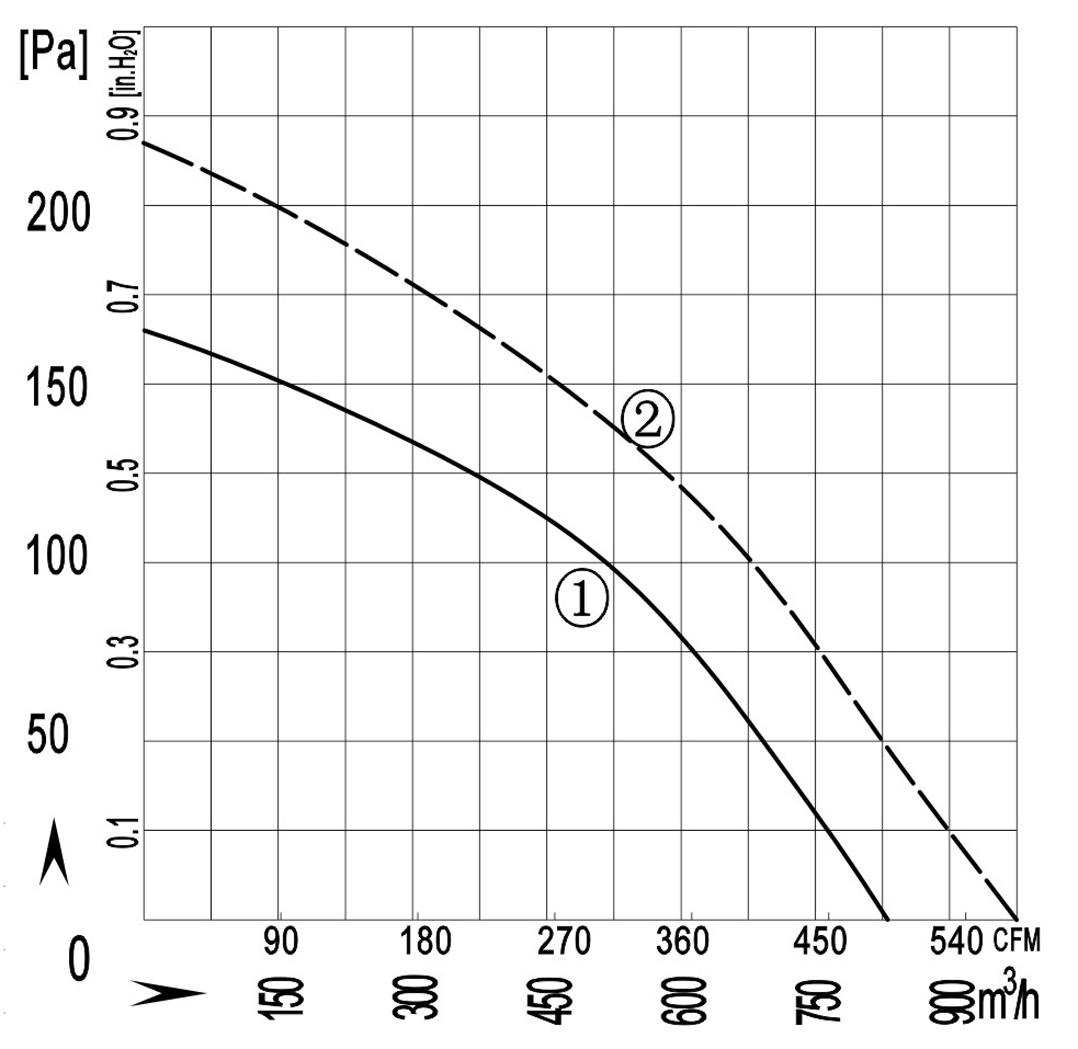

| 曲线 Curves |
 |

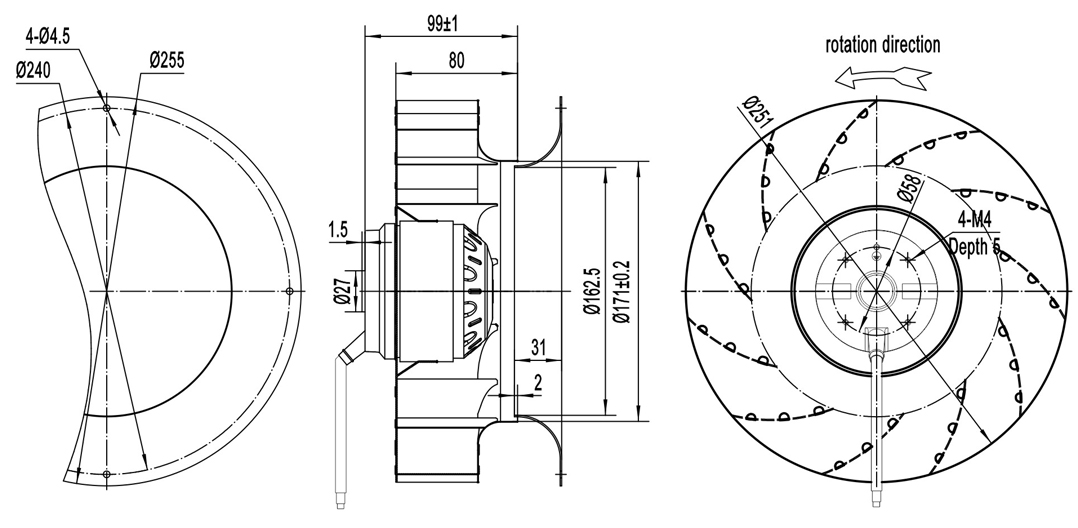

| 外形尺寸 Dimensions |
 |
