详细参数
| 技术参数 Specifications | ||||||||||||
| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | ||
| Type | V | Hz | A | W | rpm | u F | m³/h/CFM | dB(A) | Min/Max(℃） | # | ||
| F2E146-150S-AH71 | 220/230 | 50 | 1.2 | 260 | 2250 | 7 | 780/458 | 67 | -30/+60 | ① | CCC,CE,RoHS | |

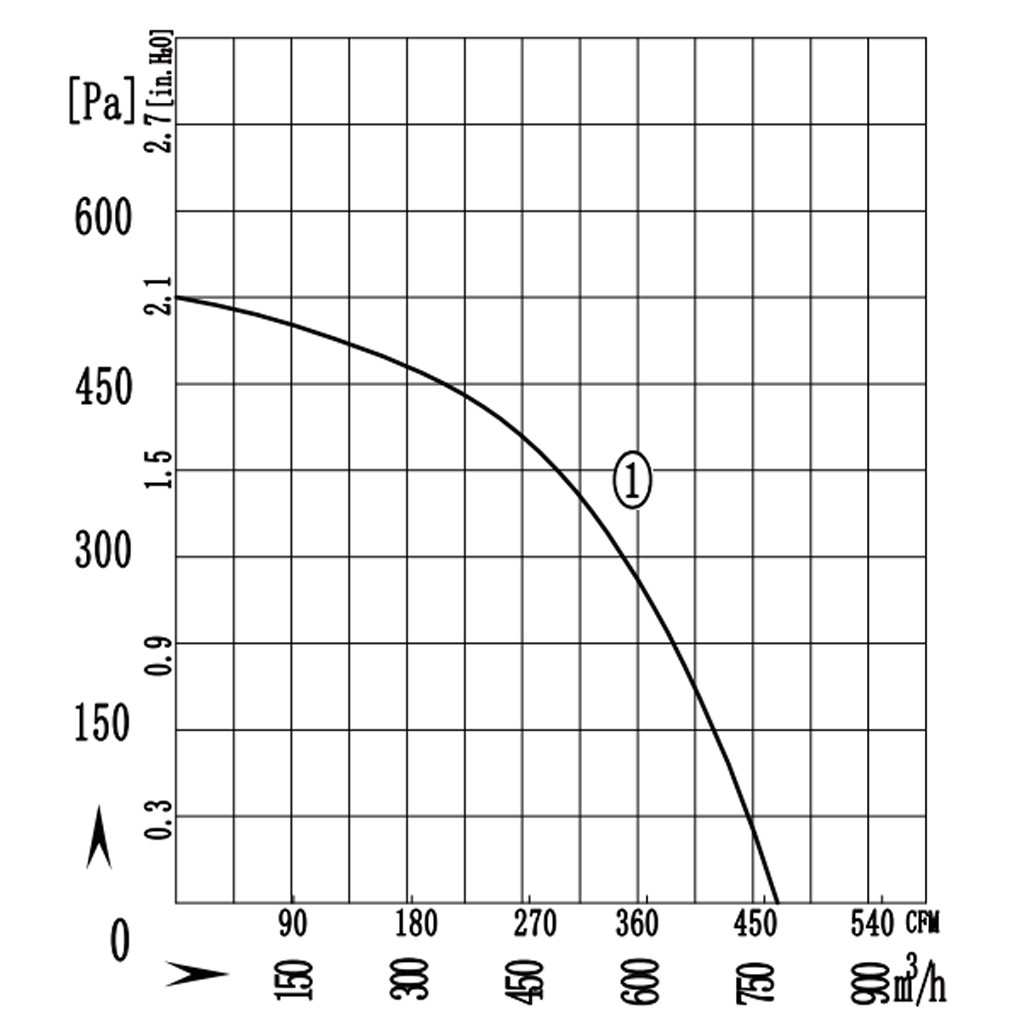

| 曲线 Curves |
 |

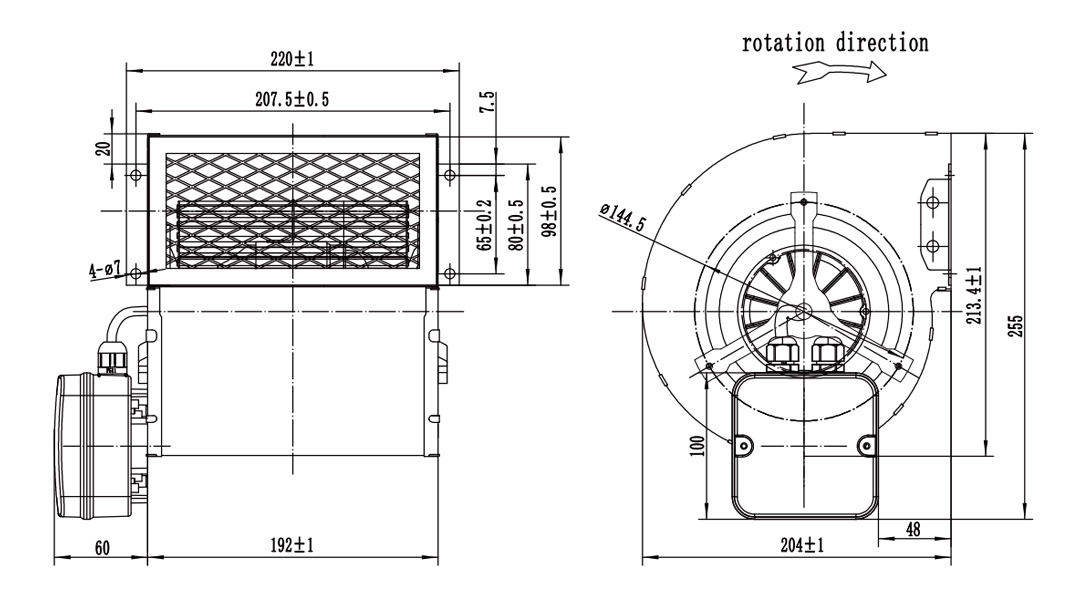

| 外形尺寸 Dimensions |
 |
