详细参数
| 技术参数 Specifications | ||||||||||||
| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | ||
| Type | V | Hz | A | W | rpm | u F | m³/h/CFM | dB(A) | Min/Max(℃） | # | ||
| F4E146-220S-AH70 | 220/230 | 50 | 0.60 | 125 | 1250 | 5 | 920/541 | 58 | -30/+60 | ① | CCC,CE,RoHS | |
| 220/230 | 60 | 0.80 | 180 | 1300 | 5 | 950/558 | 60 | -30/+60 | ② | CCC,CE,RoHS | ||

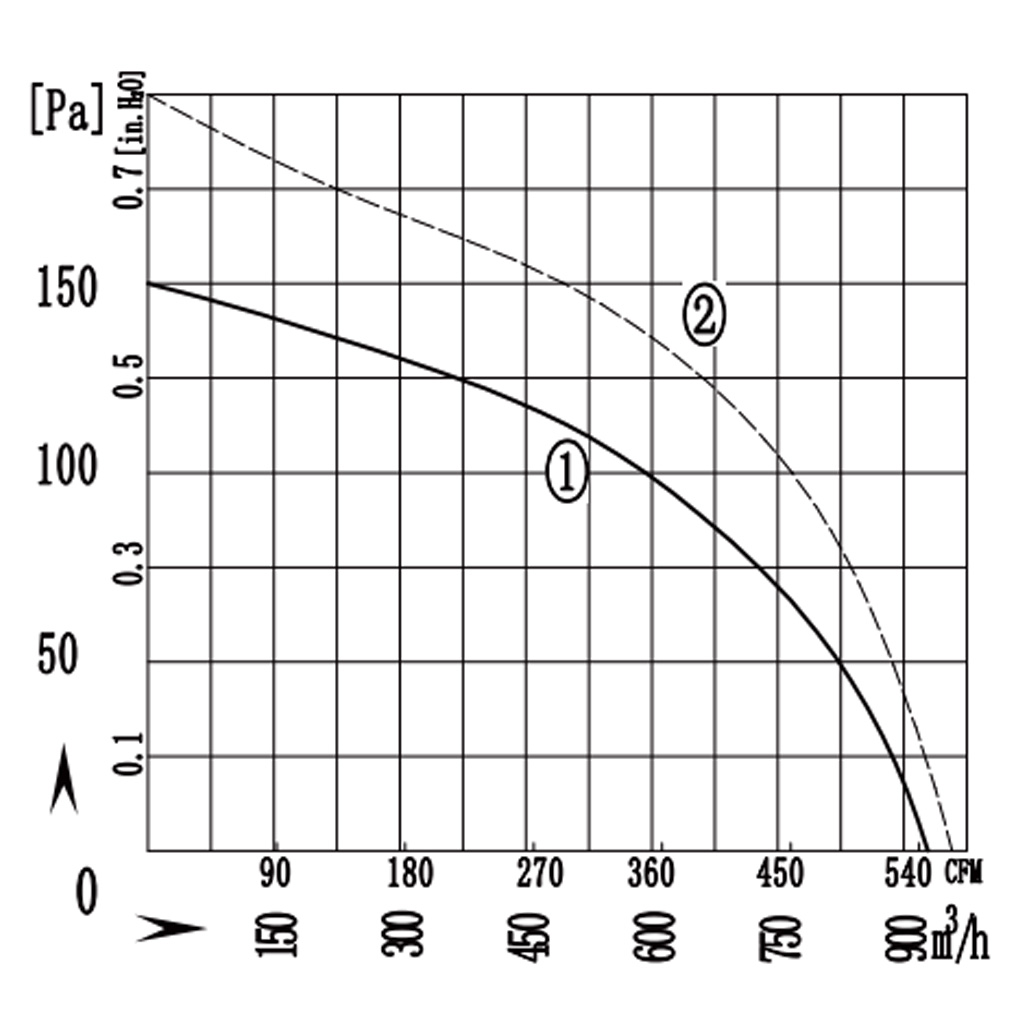

| 曲线 Curves |
 |

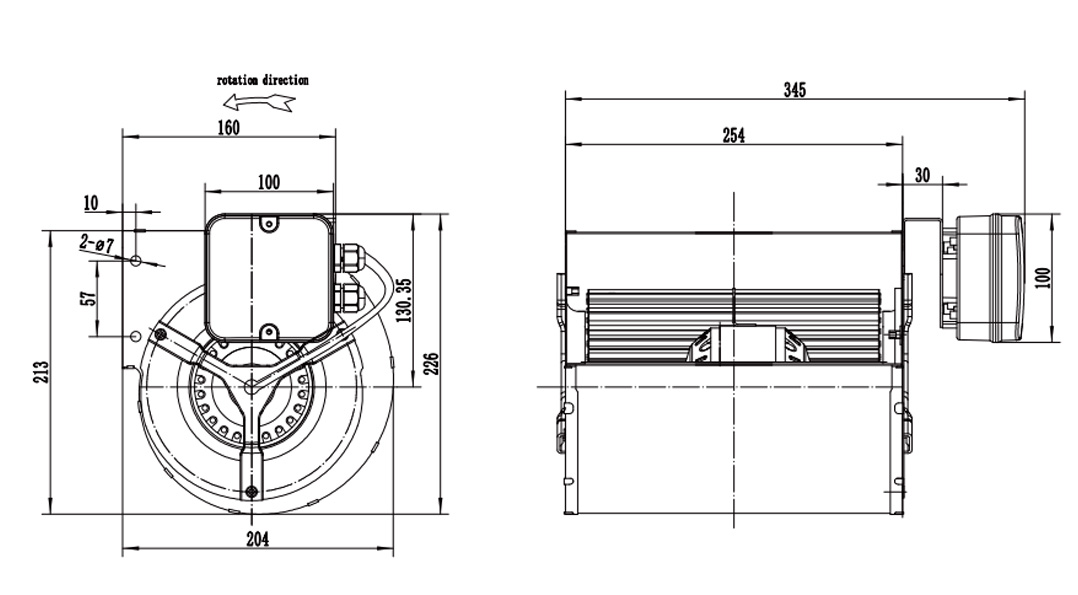

| 外形尺寸 Dimensions |
 |
