详细参数
| 技术参数 Specifications | |||||||
| 型号 | 曲线 | 额定电压 | 转速 | 输入功率 | 电流 | 噪音 | 使用温度 |
| Type | Curve | Nominal voltage | Speed | Power input | Current draw | Sound pressure level | Perm.amb.temp. |
| A3P180-DC072-002 | [VDC] | [rpm] | [W] | [A] | [dB] | [℃] | |
| ① | 48 | 6200 | 250 | 5.2 | 76 | -35~+75 |

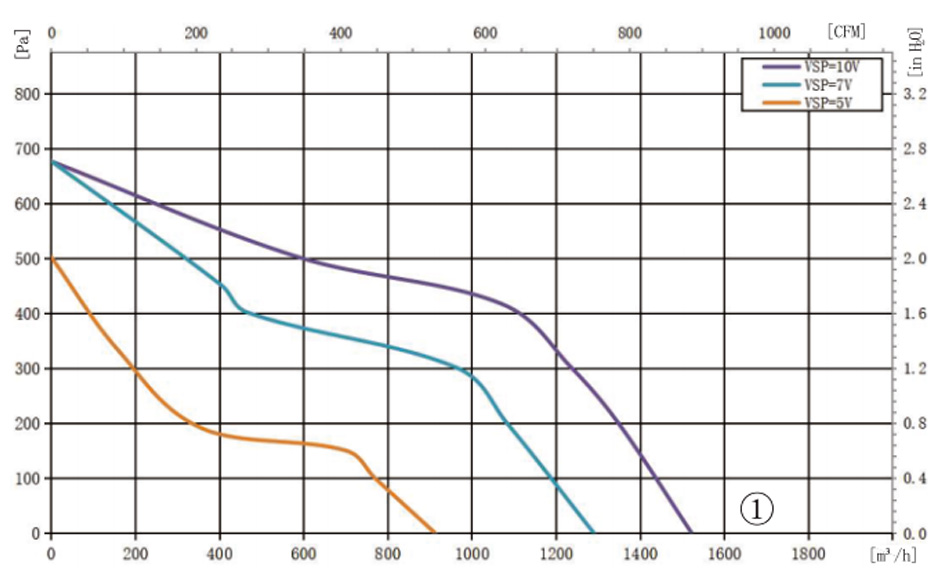

| 曲线 Curves | |||||||
 |
信号名 | 颜色 | 规格 | ||||
| SIGNAL | COLOR | SPEC | |||||
| Vs | 红 | DC48V | |||||
| RED | |||||||
| GND | 蓝 | GND | |||||
| BLUE | |||||||
| Vsp | 黄 | 0-10VDC/PWM | |||||
| YELLOW | |||||||
| TACH | 白 | 3 Pulse/R | |||||
| WHITE | |||||||

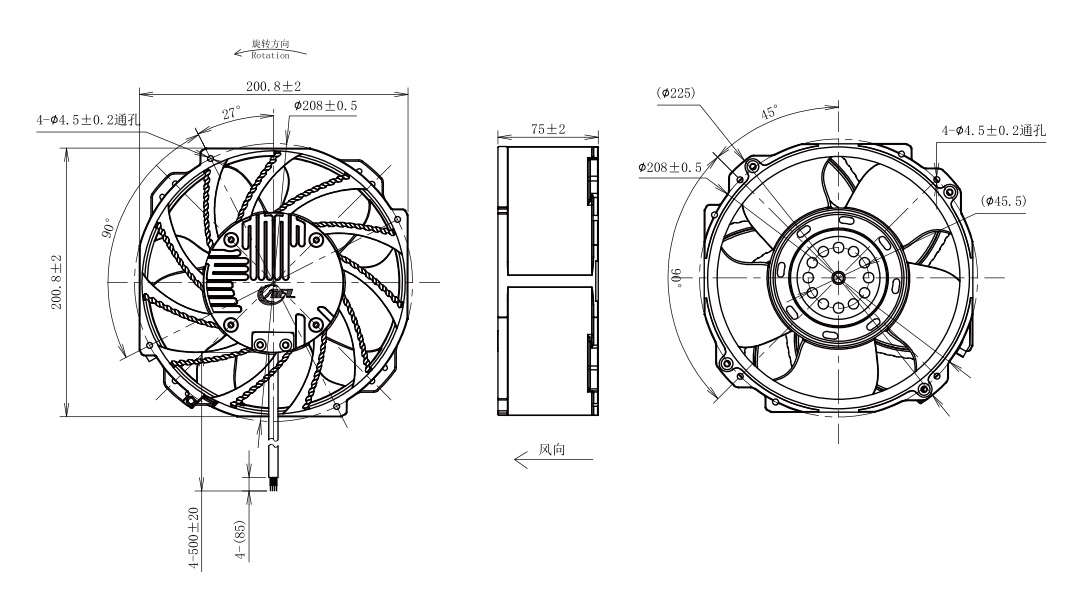

| 外形尺寸 Dimensions |
 |
