详细参数
| 技术参数 Specifications | |||||||
| 型号 | 曲线 | 额定电压 | 转速 | 输入功率 | 电流 | 噪音 | 使用温度 |
| Type | Curve | Nominal voltage | Speed | Power input | Current draw | Sound pressure level | Perm.amb.temp. |
| [VDC] | [rpm] | [W] | [A] | [dB] | [℃] | ||
| A3P300-DC102-015 | ① | 48 | 4200 | 580 | 12 | 80 | -25～+60 |

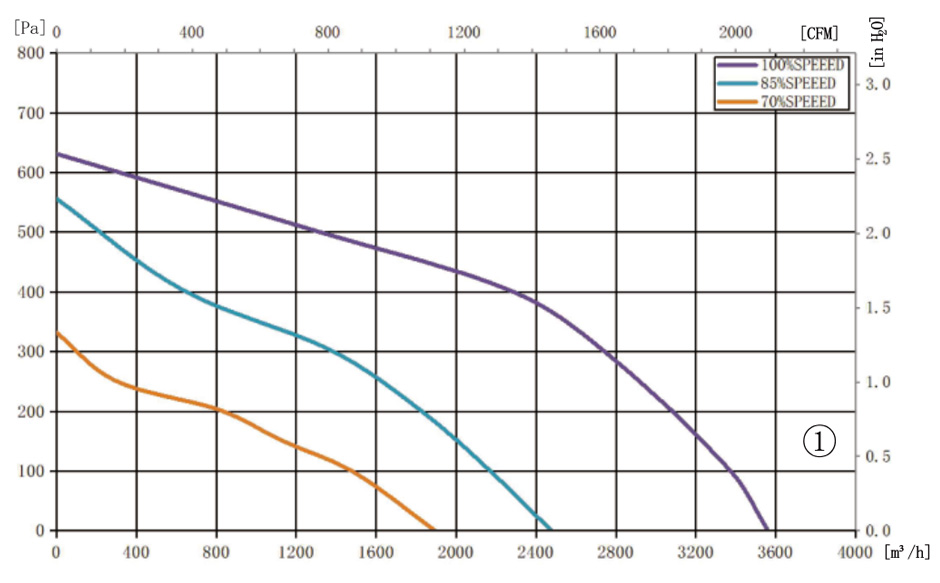

| 曲线 Curves | |||||||
 |
信号名 | 颜色 | 规格 | ||||
| SIGNAL | COLOR | SPEC | |||||
| Vs | 红 | DC48V | |||||
| RED | |||||||
| Vsp | 黄 | 0-10VDC/PWM | |||||
| YELLOW | |||||||
| GND | 蓝 | GND | |||||
| BLUE | |||||||
| TACH | 白 | 3 Pulse/R | |||||
| WHITE | |||||||

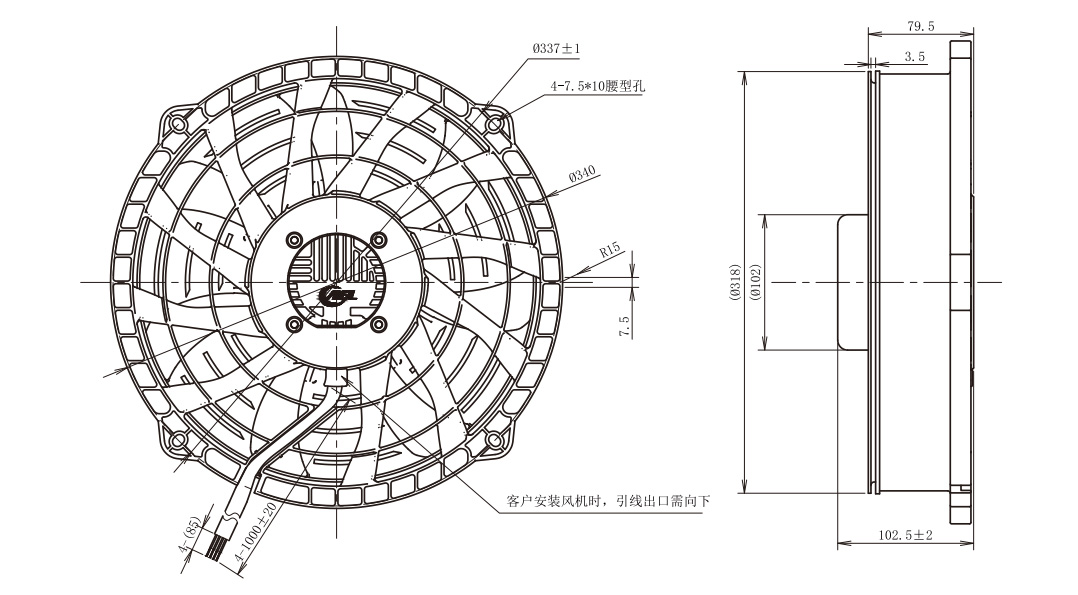

| 外形尺寸 Dimensions | |
 |
