详细参数
| 技术参数 Specifications | |||||||
| 型号 | 曲线 | 额定电压 | 转速 | 输入功率 | 电流 | 噪音 | 使用温度 |
| Type | Curve | Nominal voltage | Speed | Power input | Current draw | Sound pressure level | Perm.amb.temp. |
| B3P133-DC072-022 | [VDC] | [rpm] | [W] | [A] | [dB] | [℃] | |
| ① | 24 | 4500 | 55 | 2.6 | 70 | -20～+60 |

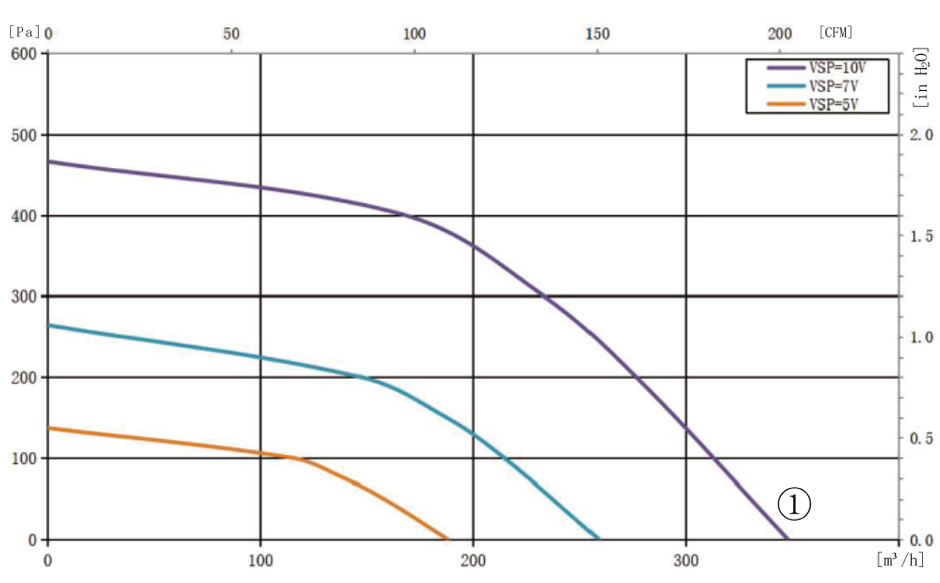

| 曲线 Curves | |||
 |
信号名 SIGNAL |
颜色 COLOR |
规格 SPEC |
| Vs | 红 RED |
DC24V | |
| GND | 蓝 BLUE |
GND | |
| Vsp | 黄 YELLOW |
0-10VDC/PWM | |
| FG | 白 WHITE |
3 Pluse/R | |

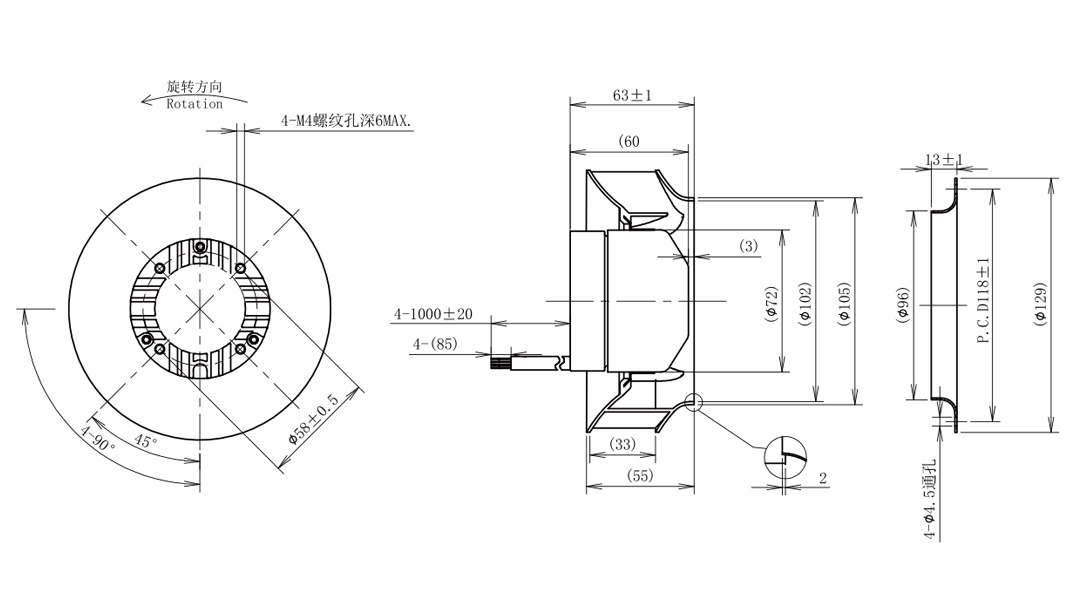

| 外形尺寸 Dimensions |
 |
