详细参数
| 技术参数 Specifications | |||||||||
| 型号 | 曲线 | 额定电压 | 频率 | 转速 | 输入功率 | 电流 | 噪音 | 使用温度 | |
| Type | Curve | Nominal voltage | Frequency | Speed | Power input | Current draw | Sound pressure level | Perm.amb.temp. | |
| [VAC] | [Hz] | [rpm] | [W] | [A] | [dB] | [℃] | |||
| F3P120-EC072-623 | ① | 220 | 50/60 | 1850 | 35 | 0.25 | 44 | -25～+60 | |
| F3P120-EC072-048 | ② | 220 | 50/60 | 2600 | 110 | 0.81 | 67 | -25～+60 | |

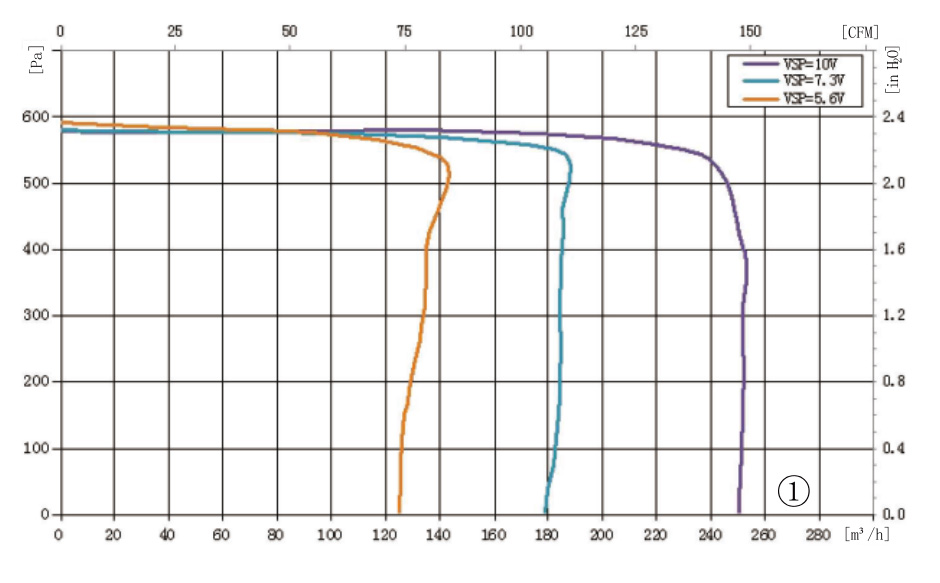

| 曲线 Curves | |||||||||
  |

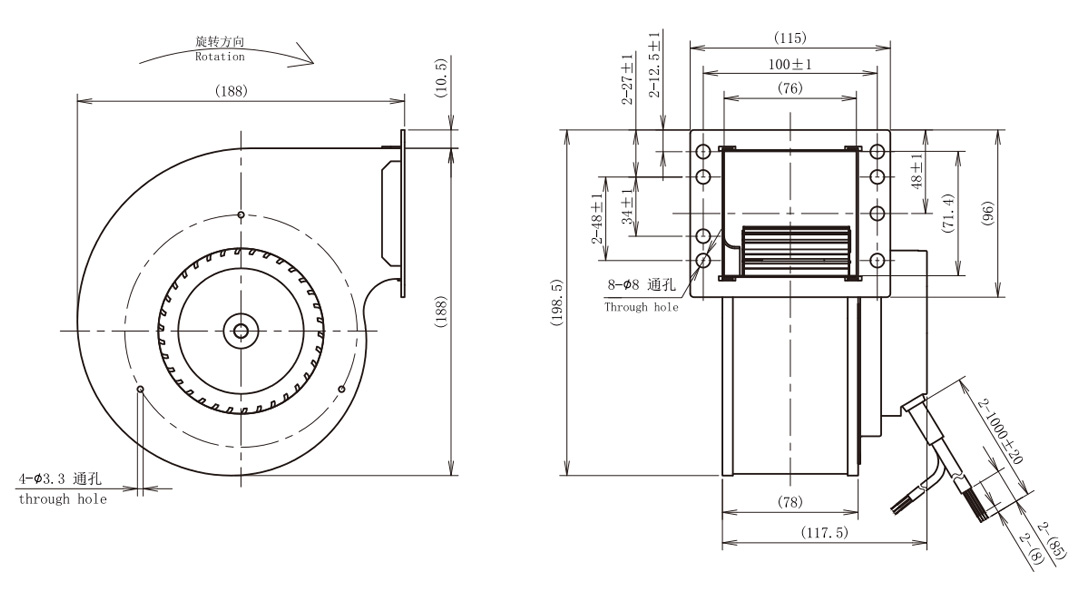

| 外形尺寸 Dimensions |
 |
