详细参数
| 技术参数 Specifications | ||||||||
| 型号 | 曲线 | 额定电压 | 转速 | 风量 | 输入功率 | 绝缘等级 | 认证 | 使用温度 |
| Type | Curve | Nominal voltage | Speed | Airflow | Power input | Insulation Class |
Approvals | Perm.amb.temp. |
| [VDC] | [rpm] | [m3/h] | [W] | [℃] | ||||
| F3P200-DC089-XXX | ① | 310 | 1290 | 470 | 67 | B | CCC CE | -25～+60 |

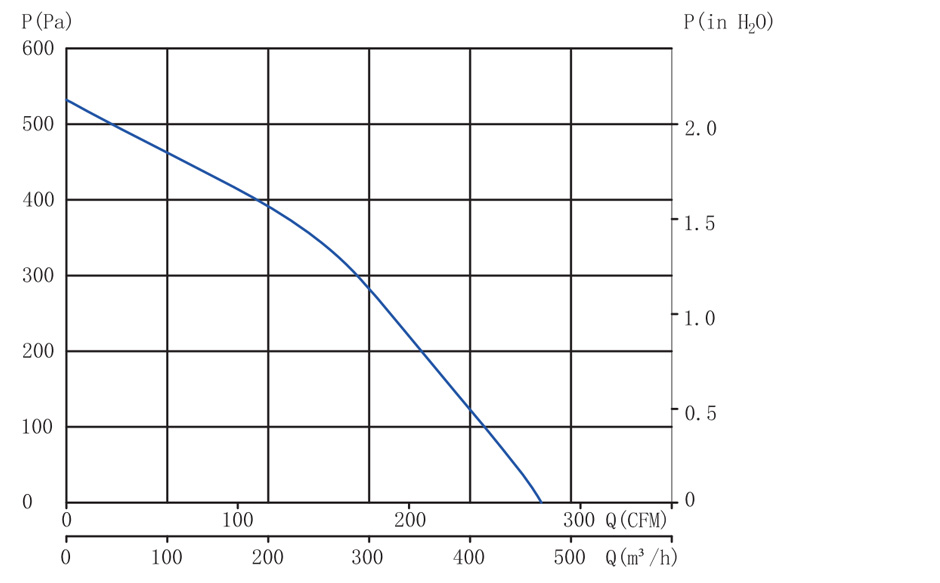

| 曲线 Curves | |||||||
 |
信号名 | 颜色 | 规格 | ||||
| SIGNAL | COLOR | SPEC | |||||
| Vs | 红 | DC310V | |||||
| RED | |||||||
| Vsp | 黄 | 0-6.5VDC/PWM | |||||
| YELLOW | |||||||
| GND | 黑 | GND | |||||
| Black | |||||||
| Vcc | 白 | DC15V | |||||
| WHITE | |||||||
| FG | 蓝 | 12 Pulse/rpm | |||||
| Blue | |||||||

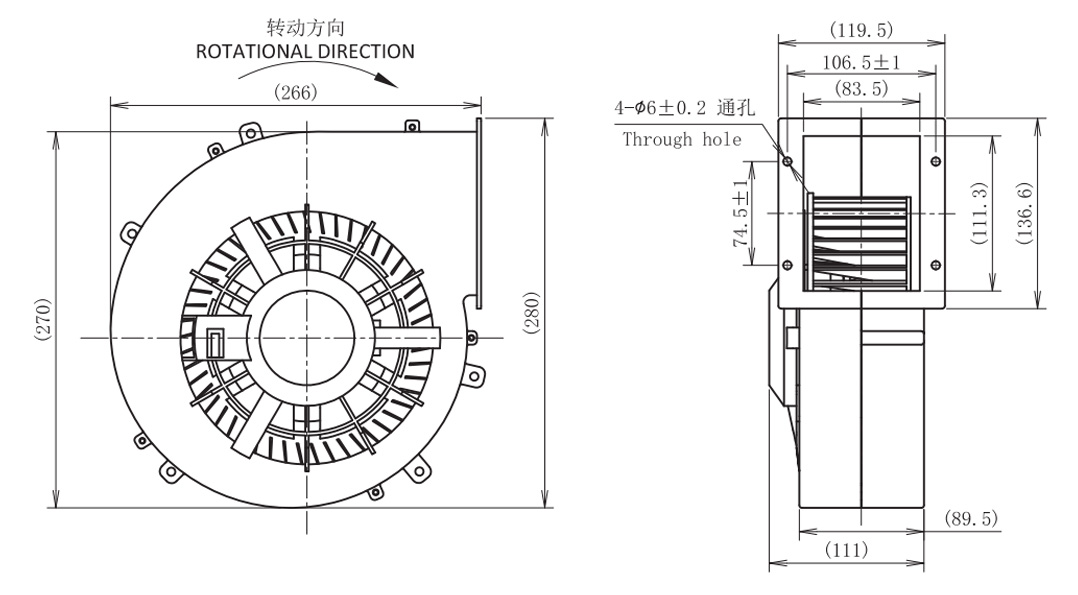

| 外形尺寸 Dimensions |
 |
